Optimizing Jaw Crusher Performance: Strategic Approaches to Reduce Liner Wear

Introduction: The High Cost of Wear

Jaw crusher liners serve as the sacrificial barrier between crushing forces and the machine’s core structure. Excessive liner wear doesn’t just incur replacementcosts; it triggers a cascade of operational inefficiencies—increased downtime, reduced throughput, higher energy consumption per ton, and compromised product gradation. Mastering liner wear reduction is essential for maximizing profitability in demanding crushing environments like mining and aggregate production. (Image: Cross-section diagram highlighting wear zones in a jaw crusher chamber)

Section 1: Understanding Wear Mechanisms
Effective mitigation starts with pinpointing the root causes:

• Abrasion Dominance:Constant sliding friction caused by rock-on-liner contact is the primary wear driver. Material abrasiveness (measured by Bond Abrasion Index or equivalent) directly governs wear rates. Granite and quartzite inflict significantly higher abrasion than softer limestone.
• Impact Fatigue:Cyclic high-stress loading from feed material causes micro-cracking and spalling on liner surfaces, particularly near the feed opening. This is exacerbated by oversized feed or uncrushables.
• Material Adherence:Sticky, clay-rich feed can build up on liner surfaces, creating an insulating layer that traps abrasive fines underneath, accelerating wear through a grinding paste effect.
• Corrosion Contribution:In wet processing or acidic environments, corrosive attack can weaken the liner substrate, making it more susceptible to abrasion and impact.

Section 2: Operational Optimization Strategies
Precise crusher configuration and feeding protocols are fundamental:

• Feed Control Mastery:Strict adherence to the maximum feed size (typically 80-90% of the feed opening) is non-negotiable. Implement robust scalping before the crusher to remove fines and oversize. Utilize vibrating grizzly feeders with adjustable grizzly bars for optimal pre-screening. Maintain consistent, non-flooding feed rates using controlled conveyor speeds and level sensors within the crusher cavity.
• Crushing Chamber Geometry:Ensure the crusher is configured correctly. The Closed Side Setting (CSS) must be optimized for the desired product size and material type. Too tight a CSS increases unnecessary crushing cycles and wear. Verify the nip angle aligns with manufacturer specifications for efficient breakage without excessive sliding. (Table: Recommended CSS & Feed Size Ranges for Common Rocks)
• Discharge Efficiency:Prevent chamber overload by ensuring discharge conveyors matched to crusher capacity. Choke feeding should be avoided unless explicitly designed for; it dramatically increases pressure and wear.

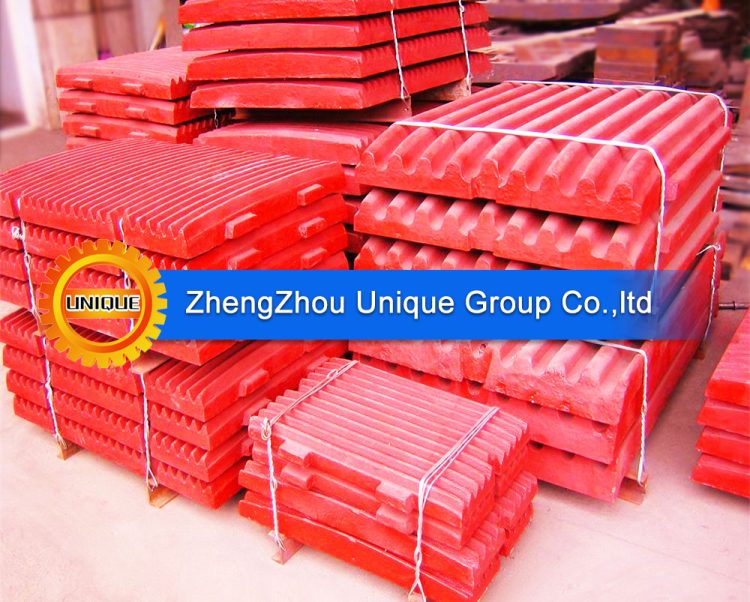

Section 3: Selecting and Managing Liners
Material science and liner design significantly impact lifespan:

Material Science Matters: Choose liner alloys based on the dominant wear mechanism:

High Manganese Steel (Mn14, Mn18, Mn22): Traditional choice, work-hardens under impact. Cost-effective for moderately abrasive feeds.

Martensitic/Bainitic Steels: Offer superior initial hardness and abrasion resistance for highly abrasive applications (e.g., granite, trap rock). Less reliant on work-hardening.

Chromium White Irons (e.g., Ni-Hard): Provide exceptional abrasion resistance but lower impact toughness. Best suited for stationary jaw surfaces experiencing primarily sliding abrasion.

Composite Liners: Emerging technology featuring embedded ceramic inserts or wear-resistant matrix materials for extreme abrasion resistance in specific zones.

Design Innovation: Utilize liners with optimized profiles. Modern designs feature:

Curved profiles promoting deep crushing chambers and better material flow.

Zoned alloys applying harder materials in high-wear areas and tougher materials where impact prevails.

Multi-piece designs allowing individual replacement of high-wear sections (e.g., bottom third of fixed jaw).

Rotation & Replacement Discipline: Implement a systematic liner rotation schedule (e.g., swapping movable and fixed liners if symmetrical). Replace liners before they are worn beyond critical thickness (refer to OEM specs). Severe wear risks damage to crusher body and support structures.

Section 4: Proactive Maintenance Protocol
Vigilance prevents minor issues from escalating:

Structured Inspection Regime: Conduct thorough visual inspections daily for cracks, looseness, and wear depth. Use wear gauges or profile templates weekly. Monitor crusher power draw – a significant increase often signals excessive friction due to worn liners or chamber issues.

Precision Installation: Ensure liners are seated correctly on machined backing surfaces according to torque specifications. Use recommended backing materials (e.g., epoxy or zinc) to eliminate voids causing stress points and uneven wear. Verify proper jaw alignment.

Lubrication & Contamination Control: Maintain bearing lubrication to OEM standards using the correct grease type and interval. Prevent dust ingress into bearings through effective seal maintenance. Dust contamination in oil is a major bearing failure cause linked to misalignment and uneven liner wear.

Condition Monitoring: Employ vibration analysis to detect misalignment, imbalance, or bearing defects early. Track liner wear rates meticulously to predict lifecycles and optimize inventory costs.

Section 5: The Economics of Wear Reduction
A holistic approach delivers tangible ROI:

Direct Cost Savings: Reduced liner consumption, lower energy bills per ton crushed.

Uptime Maximization: Minimized unplanned downtime for liner changes and collateral damage repair.

Product Quality Stability: Consistent gradation reduces downstream processing issues and product rejection.

Asset Longevity: Protecting the crusher frame and major components from excessive wear extends the machine’s operational lifespan significantly. (Table: Estimated Cost Breakdown & Savings from Proactive Wear Management)

Conclusion: A Systematic Imperative
Reducing jaw crusher liner wear is not a single-action fix but a continuous improvement process integrating operational discipline, strategic liner selection, and meticulous maintenance. By understanding wear mechanisms, optimizing feed and settings, leveraging advanced liner materials and designs, and implementing rigorous inspection protocols, operators achieve transformative results: lower cost per ton, enhanced throughput, and superior operational reliability. In an industry defined by efficiency, mastering liner wear management is a core competitive advantage.

Key Recommendations:

1.Enforce Feed Discipline: Scalping & controlled feeding are paramount.

2. Optimize Settings:CSS & nip angle are critical levers.
3. Select Liners Strategically:Match alloy & design to rock type and wear mechanism.
4. Rotate & Replace Proactively:Don’t run liners to failure.
5. Maintain Rigorously:Inspect, lubricate, align, condition monitor.
